Product Description

Qhov no Tsis yog -Ex Batch Controller rau Metering System kuj tuaj yeem sib txuas lus nrog lwm cov kev tswj xyuas yooj yim vim nws yog nrog serial interface lossis Ethernet interface haum rau MODBUS kev sib txuas lus raws tu qauv. Thiab peb tau txais daim ntawv pov thawj ATEX, CE.

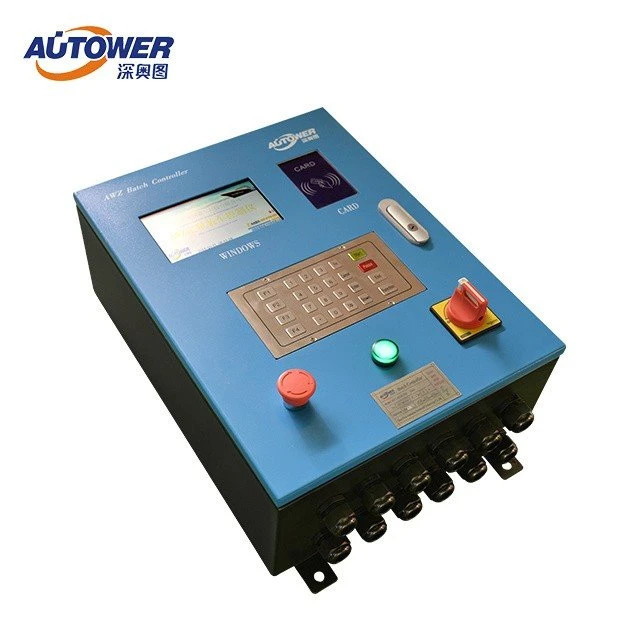

Lub batch maub los yog phab ntsa -mounted lossis txee- hom qauv nrog kev lag luam - qib ntse tswj PLC.

Khoom Specification

Lub npe	Batch Controller
Tswj tus naj npawb ntawm kev thauj khoom caj npab	1-4 loading caj npab
Fais fab mov	110-240VAC, 2A, 50Hz
LCD	High brightness STN kua siv lead ua zaub module
Khoom siv	Carbon steel, stainless hlau
IC daim npav ua haujlwm	Nrog IC daim npav ua haujlwm lossis lwm yam lus
Keyboard nkag	24keys, ua haujlwm ua lus Askiv lossis lwm yam lus
Khoom siv tus kheej -test	Tsis siv neeg ntes cov cuab yeej ua haujlwm raws li txoj cai thiab saib xyuas thaj chaw deb
Flow signal	Yuav txuas nrog 4 pawg ntawm 0-10KHz mem tes input lossis ob 4-20mA analog teeb liab
Valve txoj hauj lwm teeb liab	Txog li 12 hloov kev sib cuag valve tuaj yeem txuas nrog nws lub teeb liab
Relay tso zis	AC220V, SA, tuaj yeem tswj tau 10 lub valve lossis twj tso kua mis (ntau ntxiv)
PID kho qhov tso zis	AO tswj cov zis rau kev hloov kho tsawg kawg yog ib lub voj PID
Hom kev ua haujlwm	Kev ua haujlwm tsis tu ncua 24 teev hauv ib hnub, tuaj yeem ua haujlwm hauv zos lossis nyob deb
Ua haujlwm kub	-40℃-70 degree
Cia kub	-30℃-80 degree
txheeb ze humidity	0-90%
Kev sib txuas lus interface	RS232, RS485 lossis RJ45
Kev sib txuas lus raws tu qauv	Modbus RTU (serial chaw nres nkoj), TCP / IP (Ethernet)
Kev sib txuas lus tus nqi	10Mbps (Ethernet), 600-115200 bps (serial chaw nres nkoj)
Lub sijhawm nruab nrab ntawm kev ua tsis tiav	MTBF>100000hours (11 xyoo)
Explosion- pov thawj kos npe	ExdllBT6 (IP65), ATEX Certificate
Kev teeb tsa	Phab ntsa -mounted / txee hom
Dimension	300 (ntev) × 400 (siab) × 150 (dav)
